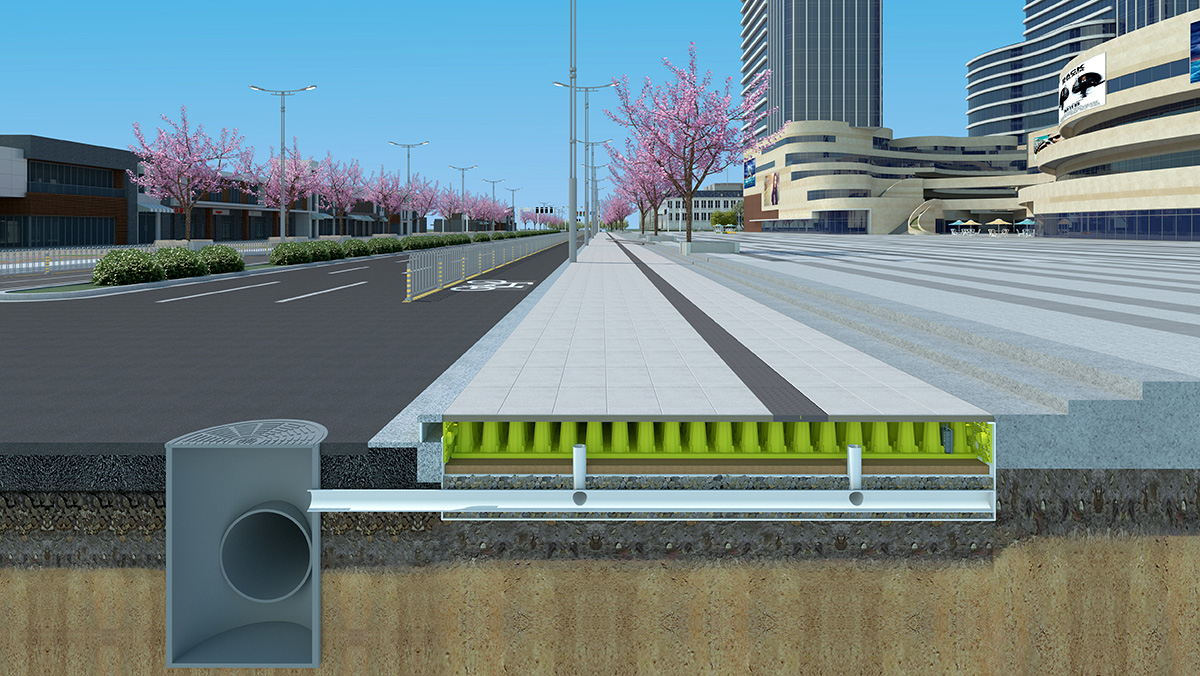

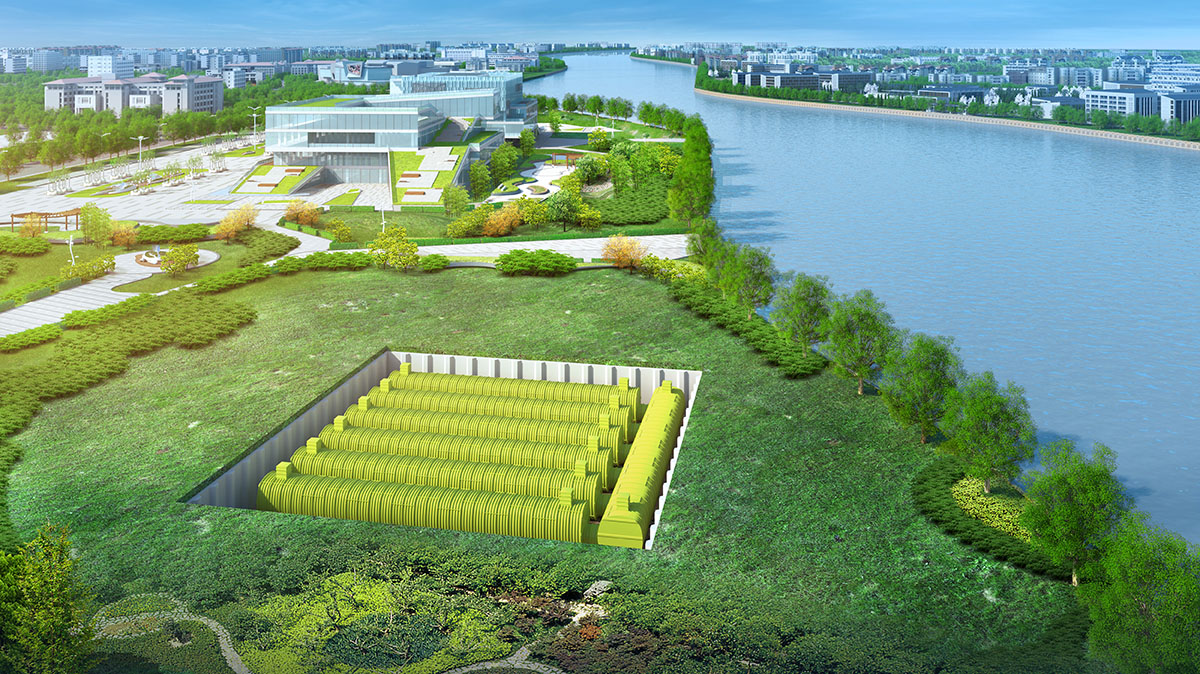

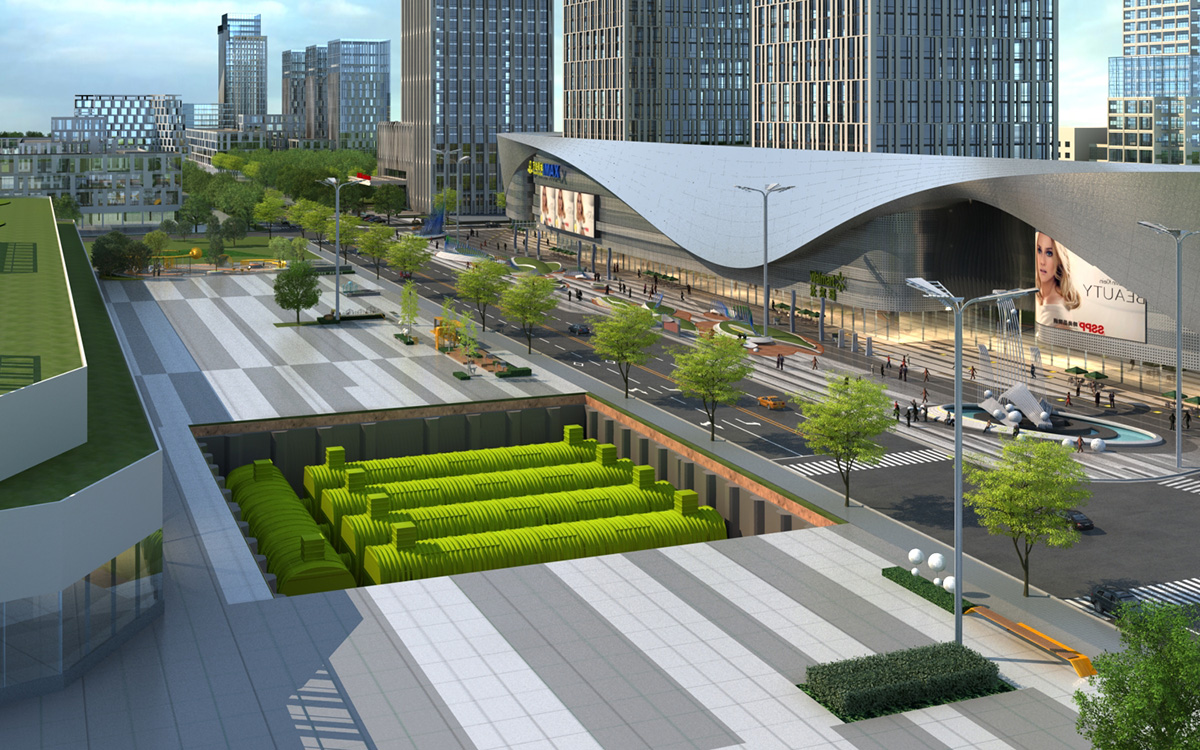

工程施工效果图制作：

 【返回其它作品分类】





工程施工涵盖的各类工程可根据其功能、规模、技术特点等因素进行划分，主要包括以下类型：



一、建筑工程类‌

房屋建筑工程‌：包括住宅、商业建筑、公共设施（如办公楼、学校、医院等）的新建、改建和扩建。施工内容涵盖基础工程、主体结构施工、屋面工程、内外装饰装修等。

工业建筑工程‌：涉及工业厂房、仓库等生产性建筑的建设，注重结构的稳定性和功能性。

二、土木工程类‌

道路与桥梁工程‌：包括公路、城市道路、铁路桥梁、城市高架桥等的建设，需确保道路的平整度和桥梁的承载能力。

隧道工程‌：涉及交通隧道、水工隧道等的施工，包括隧道开挖、支护、衬砌、排水等。

岩土工程‌：包括地基处理、边坡治理等，确保建筑物的稳定性和安全性。

三、水利工程类‌

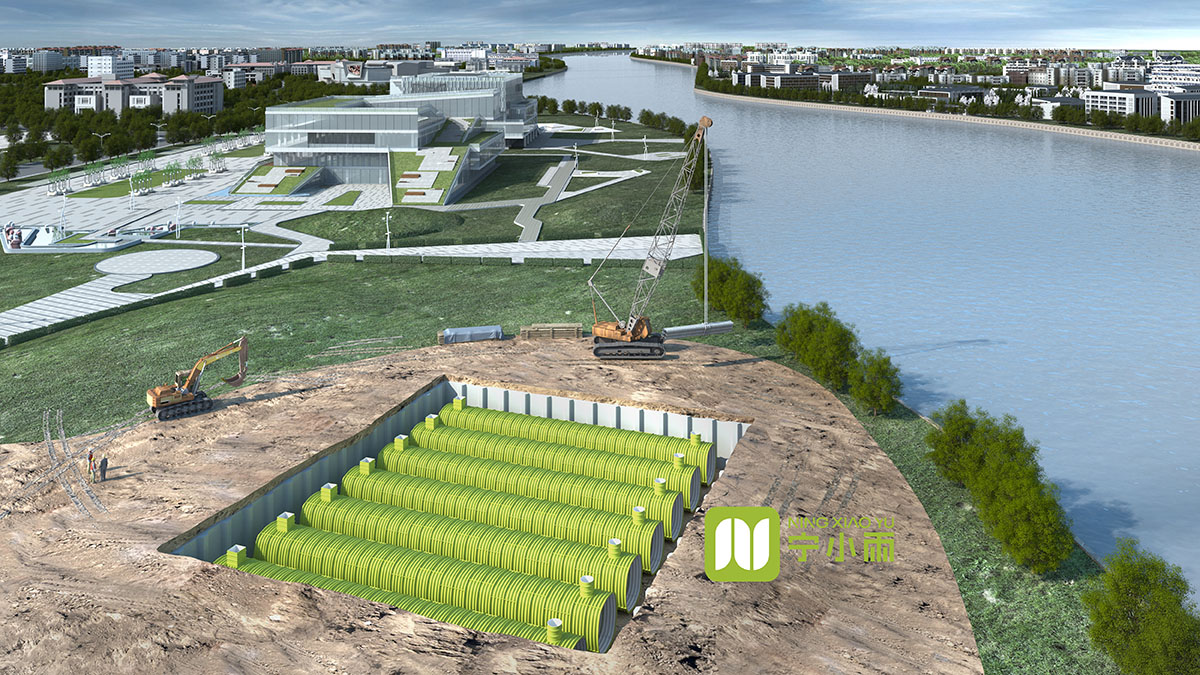

水库、大坝工程‌：涉及水库、大坝、水电站等水利枢纽的建设，需注重水利设施的防水、防漏以及水电设备的安装调试。

灌溉与防洪工程‌：包括灌溉渠道、防洪堤坝等相关设施的建造，以实现水资源的合理调配和利用。

四、电力工程类‌

发电工程‌：涉及火力发电厂、水力发电厂、风力发电厂等的建设与运营。

输电与配电工程‌：包括输电线路、变电站等电力输送和分配设施的安装。

五、机电安装工程类‌

电气安装工程‌：涵盖照明、动力、弱电等电气系统的施工，为建筑物提供电力供应和各种电气设备的运行。

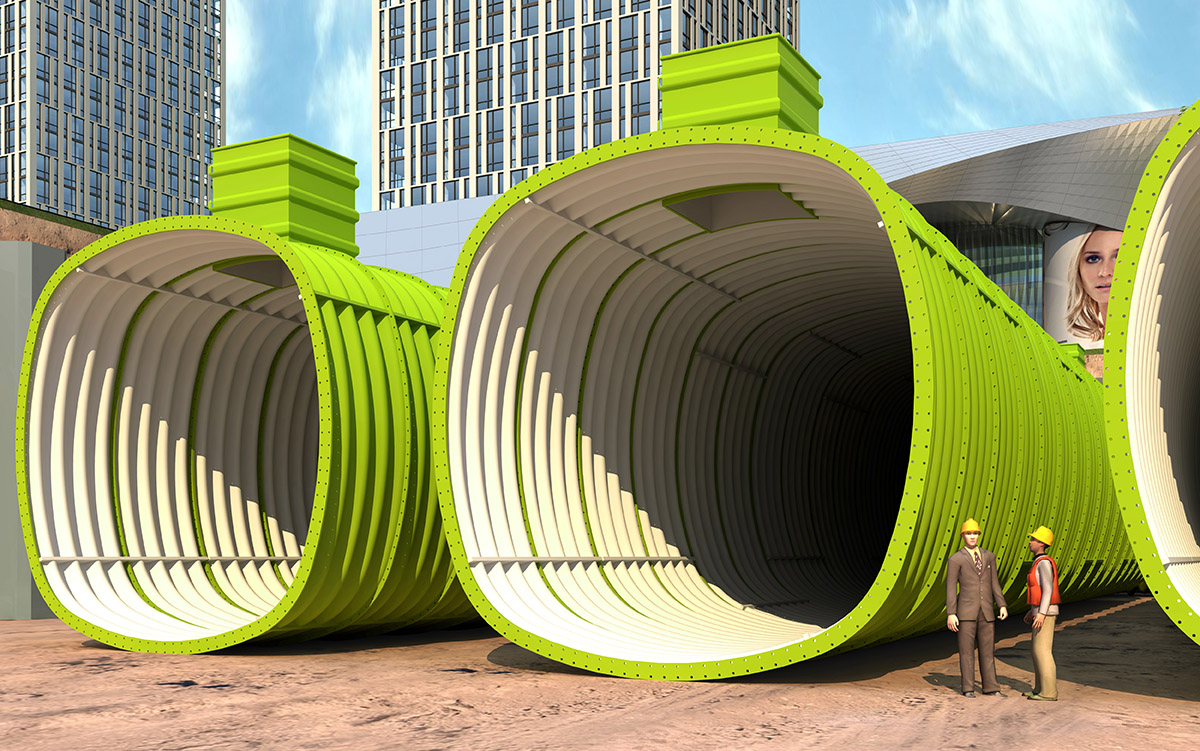

给排水安装工程‌：包括管道铺设、污水处理设施建设等，确保生活用水的供应和废水的排放。

暖通空调安装工程‌：涉及空调设备安装、通风管道铺设等，保证建筑物内的温度、湿度和空气质量符合要求。

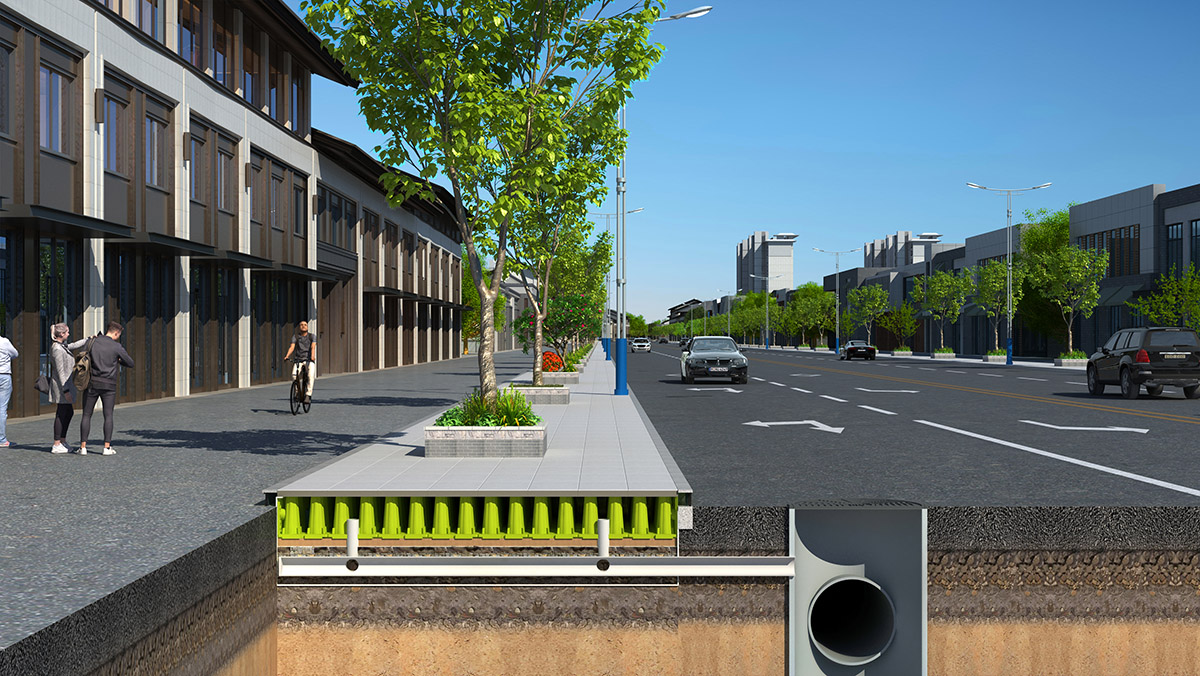

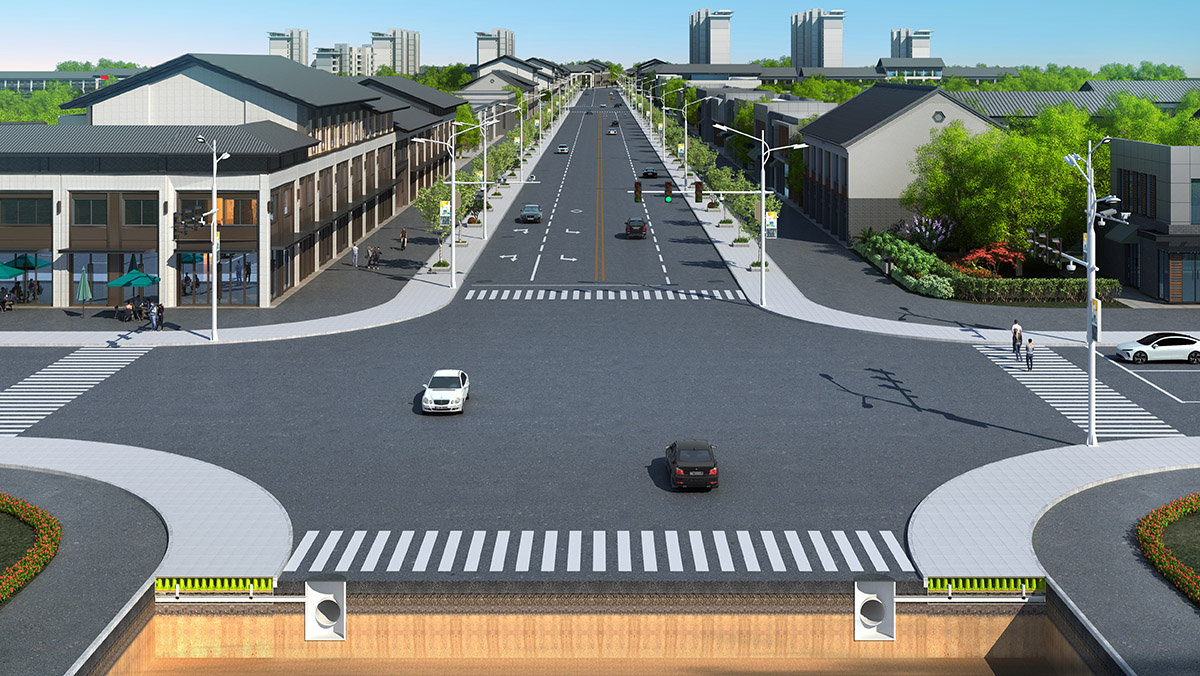

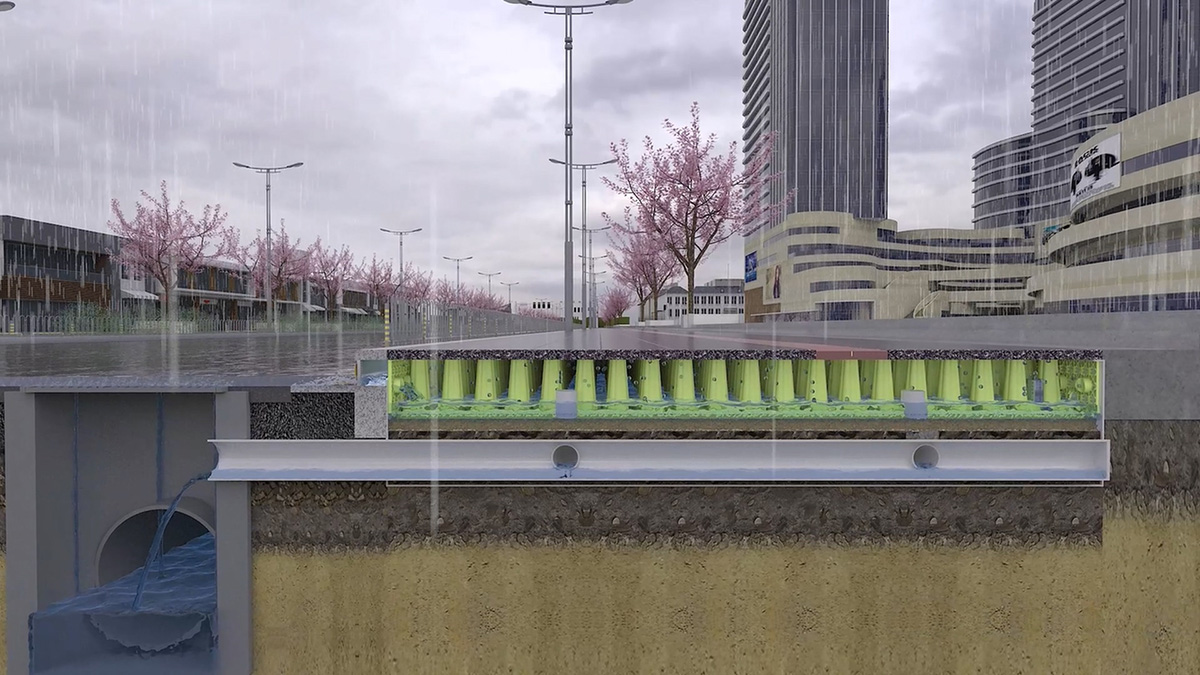

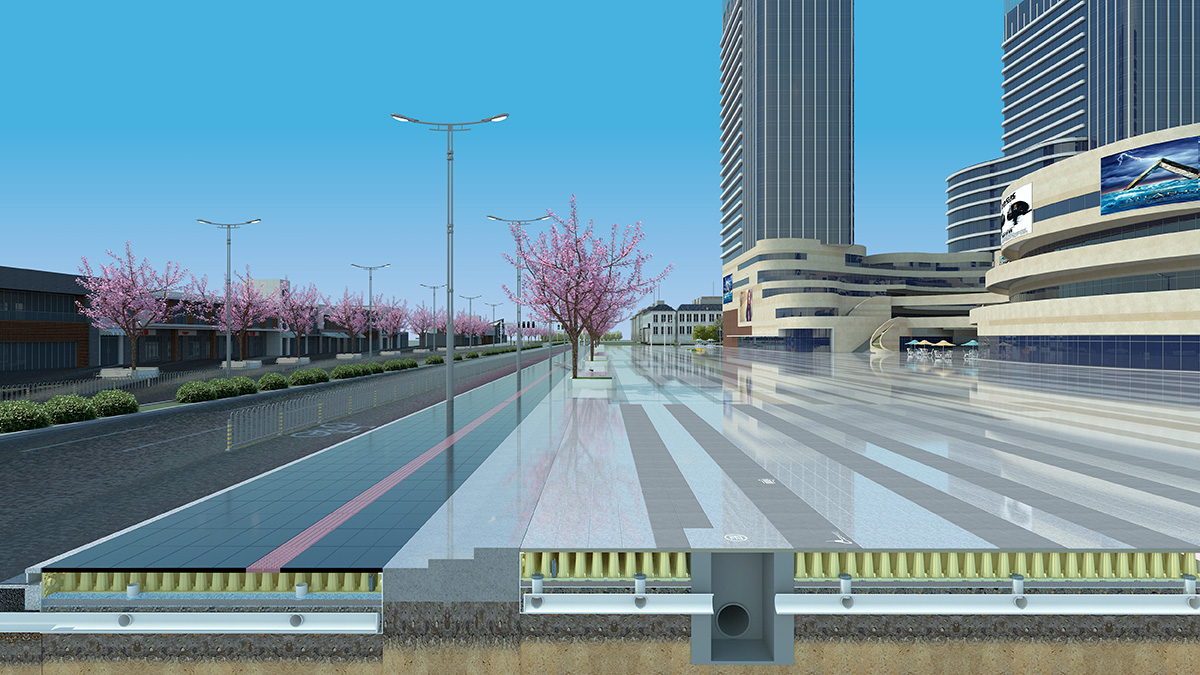

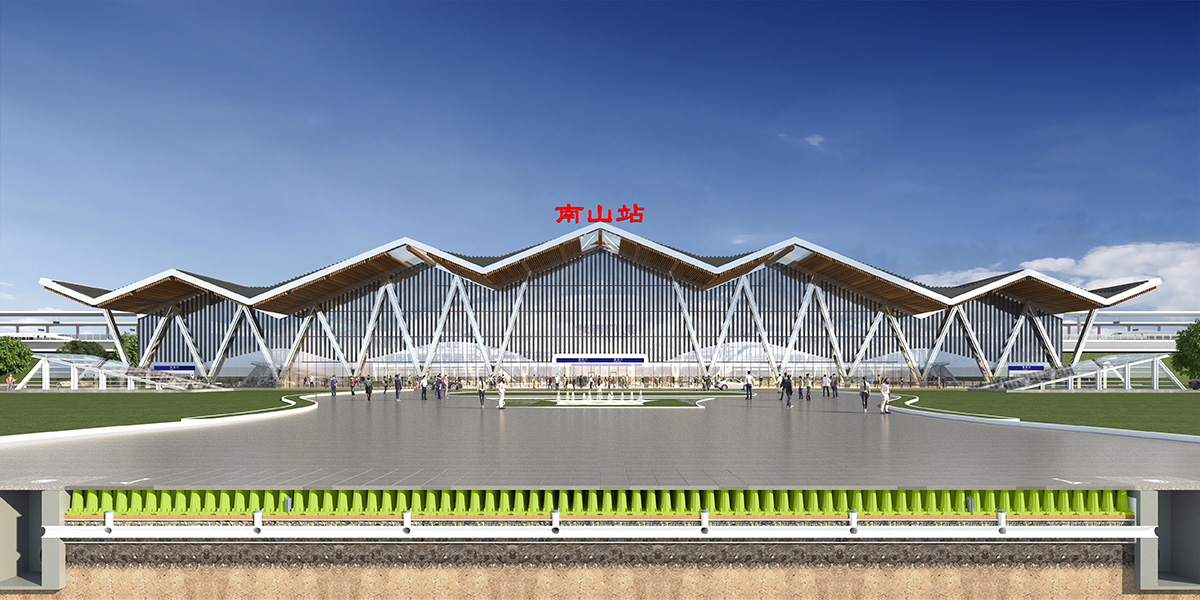

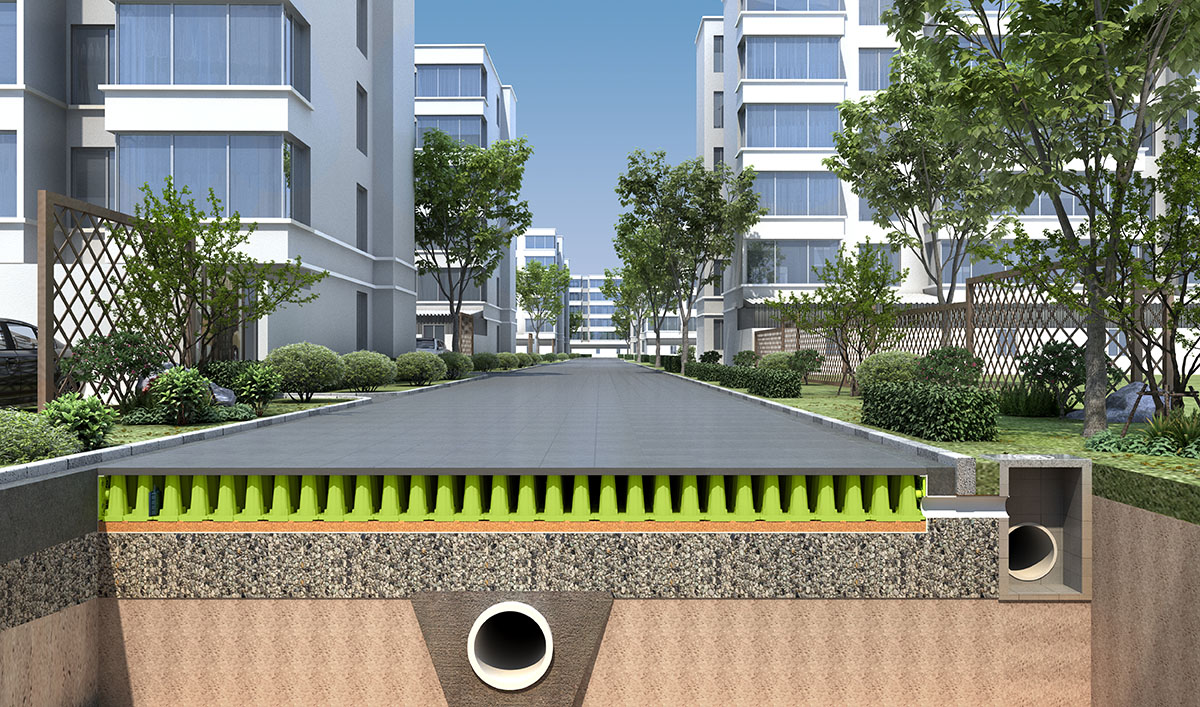

六、市政工程类‌

城市基础设施工程‌：包括城市道路、排水、污水处理、城市照明、燃气供应等基础设施的建设和维护，保障城市的正常运转。

七、装饰装修工程类‌

建筑装饰装修工程‌：对已建成的建筑物进行内部和外部的装饰装修工作，如墙面抹灰、地面铺装、门窗安装、室内外油漆等，提升建筑物的美观度和使用功能。

八、园林绿化工程类‌

绿化与景观工程‌：包括公园、小区等的绿化种植、草坪铺设、景观小品建设等，提升环境质量。

九、矿山工程类‌

矿山开采工程‌：涉及矿山开采、矿井建设等相关作业，包括采矿井、矿山设备、矿山通风、矿山排水等。

十、通信工程类‌

通信设施工程‌：包括电信基站、光缆铺设等工程，为信息传输提供基础设施。

十一、环保工程类‌

环保设施工程‌：包括污水处理厂、垃圾处理厂、废气处理设施等的建设，注重环境保护和污染治理。

十二、特殊构筑物工程类‌

特殊设备基础工程‌：包括烟囱、桥涵、水塔等特殊构筑物的建设，需满足特定的功能和技术要求。



制作一张高质量的工程施工效果图需要系统化的流程和技术整合，以下从‌核心步骤、技术工具、关键要点‌三个维度展开，结合工程行业规范与实操案例，提供可落地的解决方案：

一、核心制作流程（分阶段实施）‌

阶段1：前期准备与数据收集‌

资料整合‌

收集施工图纸（CAD/BIM模型）、材质参数表、周边环境数据

案例：某商业综合体项目通过BIM模型直接导出建筑体量数据，减少20%建模时间

需求确认‌

明确效果图用途（投标/交底/宣传）

制定技术标准（LOD350精度要求、出图视角数量）

阶段2：三维建模与场景搭建‌

模型构建‌

工具选择‌：Revit（结构建模）、3ds Max（精细建模）、SketchUp（概念模型）

精度控制‌：

基础模型（LOD200）：仅保留建筑轮廓和主要构件

施工模型（LOD350）：包含详细节点和施工工艺

环境模拟‌

导入地形数据（DEM高程图）

添加周边建筑/植被（Quixel Megascans素材库）

阶段3：材质与灯光设计‌

材质赋予‌

使用Substance Painter制作真实混凝土/金属纹理

案例：某桥梁项目通过PBR材质系统，实现钢索锈迹与反光的物理级渲染

灯光布置‌

自然光模拟‌：V-Ray Sun系统（设置经纬度/时间参数）

人工光设计‌：IES光源库（匹配LED灯具参数）

阶段4：渲染输出与后期处理‌

渲染引擎选择‌

实时渲染‌：Enscape（快速出图，适合方案汇报）

离线渲染‌：V-Ray（高质量输出，适合投标）

后期优化‌

使用Photoshop添加人物/车辆配景

案例：某住宅项目通过后期添加光影效果，提升方案表现力30%

二、技术工具链（分场景推荐）‌

工具类型‌ ‌推荐软件‌ ‌适用场景‌ ‌优势‌

建模工具‌ Revit/3ds Max/SketchUp 建筑体量/构件建模 行业通用，数据兼容性强

渲染引擎‌ V-Ray/Corona/Enscape 高质量出图/实时预览 渲染效果逼真，效率可控

动画制作‌ Lumion/Unity 施工工艺动画/VR演示 交互性强，支持多平台输出

后期处理‌ Photoshop/After Effects 图像调色/特效添加 操作灵活，提升画面艺术感

工具组合案例‌：

概念方案‌：SketchUp建模 + Enscape实时渲染（2小时出图）

投标文件‌：Revit模型 + V-Ray离线渲染（精度LOD350，耗时8小时）

三、关键制作要点（工程行业规范）‌

尺寸精度控制‌

建筑构件比例误差≤0.5%（参照《建筑工程设计文件编制深度规定》）

案例：某医院项目因模型比例错误，导致施工阶段返工损失50万元

施工工艺可视化‌

重点展示复杂节点（如钢结构焊接、管综排布）

工具：3ds Max动画模块（制作吊装/浇筑工艺动画）

数据安全‌

加密传输BIM模型（使用Navisworks权限管理）

案例：某地铁项目因模型泄露，导致技术方案被竞争对手模仿

四、进阶技巧（提升专业度）‌

多软件协同‌

流程：Revit建模 → Dynamo参数化 → 3ds Max渲染 → Photoshop后期

效率提升：复杂曲面建模时间减少60%

AI辅助设计‌

使用Midjourney生成材质概念图

案例：某幕墙公司通过AI快速生成20种玻璃幕墙方案，缩短设计周期3天

虚拟现实应用‌

工具：Oculus Quest 2 + Twinmotion VR

效果：客户沉浸式体验，方案通过率提升40%

五、常见问题解决方案‌

问题‌ ‌解决方案‌ ‌案例‌

渲染速度慢 使用代理模型（Revit Proxy） 某超高层项目渲染时间从24小时降至6小时

材质不真实 扫描真实材质（Agisoft Metashape） 某石材幕墙项目材质真实度提升90%

视角选择不当 遵循“三分构图法”+施工重点区域优先 某桥梁项目通过合理视角，提升方案说服力

六、交付标准（行业参考）‌

图像分辨率‌：不低于3000×2250像素（满足A1图纸打印需求）

色彩模式‌：CMYK（印刷用）或RGB（电子版）

文件格式‌：TIFF（无损压缩）/JPEG（压缩比≤10）

标注要求‌：包含比例尺、视角说明、材质说明

总结‌：制作工程施工效果图需遵循“数据驱动-技术整合-行业规范”三原则，建议工程企业建立标准化流程：

制定《效果图制作技术手册》（含模型精度、渲染参数等标准）

组建“建模+渲染+施工”复合型团队

引入BIM+VR技术，实现从二维图纸到三维沉浸体验的升级

通过以上方法，可显著提升方案表现力（中标率提升30%）、缩短决策周期（50%以上），并降低施工风险（70%设计变更可提前发现）。

来源：专业的效果图公司，追求卓越18年的三维图制作经验，承接厂房/车间/仓储/别墅/民宿/农庄/加油站/办公楼/会所/景观/园林/古建/祠堂/工程/亮化/道路/桥梁/幕墙/展馆/室内类效果图制做，覆盖拌合站工程|工业|产品|机械|设备|生产流水线|钢结构领域的3d效果图制做，结合3D动画全景图交互渲染技术助力，提升设计方案创新和互动的的品质！—高维设计

The various types of projects covered by engineering construction can be classified based on their functions, scale, technical characteristics, and other factors, mainly including the following types:

1、 Construction Engineering

Building construction projects: including the construction, renovation, and expansion of residential, commercial, and public facilities (such as office buildings, schools, hospitals, etc.). The construction content covers basic engineering, main structure construction, roof engineering, interior and exterior decoration, etc.

Industrial construction engineering: involves the construction of productive buildings such as industrial plants and warehouses, emphasizing structural stability and functionality.

2、 Civil Engineering

Road and bridge engineering: including the construction of highways, urban roads, railway bridges, urban elevated bridges, etc., it is necessary to ensure the smoothness of roads and the bearing capacity of bridges.

Tunnel engineering: involves the construction of traffic tunnels, hydraulic tunnels, etc., including tunnel excavation, support, lining, drainage, etc.

Geotechnical engineering: including foundation treatment, slope treatment, etc., to ensure the stability and safety of buildings.

3、 Water conservancy engineering

Reservoir and dam engineering: involving the construction of water conservancy hubs such as reservoirs, dams, and hydropower stations, attention should be paid to the waterproofing and leakage prevention of water conservancy facilities, as well as the installation and commissioning of hydropower equipment.

Irrigation and flood control engineering: including the construction of irrigation channels, flood control dams and other related facilities to achieve the rational allocation and utilization of water resources.

4、 Electric Power Engineering

Power generation engineering: involves the construction and operation of thermal power plants, hydroelectric power plants, wind power plants, etc.

Transmission and distribution engineering: including the installation of power transmission and distribution facilities such as transmission lines and substations.

5、 Mechanical and Electrical Installation Engineering

Electrical installation engineering: covering the construction of electrical systems such as lighting, power, and weak current, providing power supply for buildings and the operation of various electrical equipment.

Water supply and drainage installation project: including pipeline laying, sewage treatment facility construction, etc., to ensure the supply of domestic water and the discharge of wastewater.

HVAC installation project: involves the installation of air conditioning equipment, laying of ventilation ducts, etc., to ensure that the temperature, humidity, and air quality inside the building meet the requirements.

6、 Municipal engineering category

Urban infrastructure engineering: including the construction and maintenance of urban roads, drainage, sewage treatment, urban lighting, gas supply and other infrastructure to ensure the normal operation of the city.

7、 Decoration and renovation engineering

Architectural decoration and renovation project: carry out internal and external decoration and renovation work on completed buildings, such as wall plastering, floor paving, door and window installation, indoor and outdoor painting, etc., to enhance the beauty and functionality of the building.

8、 Landscape and Greening Engineering

Greening and Landscape Engineering: including green planting, lawn laying, and landscape decoration construction in parks, residential areas, etc., to improve environmental quality.

9、 Mining Engineering

Mining engineering: involves mining operations, mine construction, and other related tasks, including mining wells, mining equipment, mine ventilation, mine drainage, etc.

10、 Communication Engineering

Communication infrastructure engineering: including telecommunications base stations, fiber optic cable laying, and other projects, providing infrastructure for information transmission.

11、 Environmental engineering category

Environmental protection facilities engineering: including the construction of sewage treatment plants, garbage treatment plants, waste gas treatment facilities, etc., focusing on environmental protection and pollution control.

12、 Special structure engineering category

Special equipment foundation engineering: including the construction of special structures such as chimneys, bridges and culverts, water towers, etc., which must meet specific functional and technical requirements.

Creating a high-quality engineering construction rendering requires a systematic process and technical integration. The following is developed from three dimensions: core steps, technical tools, and key points. Combined with engineering industry standards and practical cases, practical solutions are provided:

1、 Core production process (phased implementation)

Stage 1: Preliminary preparation and data collection

Data integration

Collect construction drawings (CAD/BIM models), material parameter tables, and surrounding environmental data

Case: A commercial complex project directly exports building volume data through BIM models, reducing modeling time by 20%

Requirement confirmation

Clarify the purpose of the rendering (bidding/disclosure/promotion)

Develop technical standards (LOD350 accuracy requirements, number of drawing angles)

Stage 2: 3D modeling and scene construction

Model construction

Tool selection: Revit (structural modeling), 3ds Max (fine modeling), SketchUp (conceptual modeling)

Precision control:

Basic Model (LOD200): Only retains the building outline and main components

Construction Model (LOD350): Includes detailed nodes and construction techniques

Environmental simulation

Import terrain data (DEM elevation map)

Add surrounding buildings/vegetation (Quixel Megascans material library)

Stage 3: Material and Lighting Design

Material assignment

Using Substance Painter to create realistic concrete/metal textures

Case: A bridge project achieved physical rendering of steel cable rust and reflection through PBR material system

Lighting arrangement

Natural light simulation: V-Ray Sun system (setting latitude and longitude/time parameters)

Artificial light design: IES light source library (matching LED lighting parameters)

Stage 4: Rendering Output and Post Processing

Rendering engine selection

Real time rendering: Enscape (fast rendering, suitable for solution reporting)

Offline rendering: V-Ray (high-quality output, suitable for bidding)

Post optimization

Add character/vehicle scenery using Photoshop

Case: A residential project improved its expressive power by 30% by adding light and shadow effects in the later stage

2、 Technical toolchain (recommended by scenario)

Recommended tool types, software application scenarios, advantages

The modeling tool Revit/3ds Max/SketchUp is widely used in the building volume/component modeling industry and has strong data compatibility

The rendering engine V-Ray/Corona/Enscape produces high-quality images/real-time previews with realistic rendering effects and controllable efficiency

Animation production Lumion/Unity construction process animation/VR demonstration has strong interactivity and supports multi platform output

Post processing Photoshop/After Effects image color grading/special effects addition operations are flexible, enhancing the artistic sense of the picture

Tool combination case:

Conceptual solution: SketchUp modeling+Enscape real-time rendering (2-hour output)

Bid document: Revit model+V-Ray offline rendering (accuracy LOD350, takes 8 hours)

3、 Key production points (engineering industry standards)

Dimensional accuracy control

The proportion error of building components is ≤ 0.5% (refer to the "Regulations on the Depth of Compilation of Building Engineering Design Documents")

Case: A hospital project suffered a rework loss of 500000 yuan during the construction phase due to incorrect model proportions

Visualization of construction technology

Key display of complex nodes (such as steel structure welding, pipe layout)

Tool: 3ds Max Animation Module (Creating Lifting/Pouring Process Animation)

Data Security

Encrypt transmission of BIM models (using Navisworks permission management)

Case: A subway project had its technical solution imitated by competitors due to model leakage

4、 Advanced Skills (Enhancing Professionalism)

Multi software collaboration

Process: Revit modeling → Dynamo parameterization → 3ds Max rendering → Photoshop post production

Efficiency improvement: 60% reduction in modeling time for complex surfaces

AI assisted design

Generate material concept maps using Midjourney

Case: A curtain wall company uses AI to quickly generate 20 glass curtain wall solutions, shortening the design cycle by 3 days

Virtual Reality Applications

Tools: Oculus Quest 2+Twinmotion VR

Effect: Immersive customer experience, solution pass rate increased by 40%

5、 Common problem solutions

Problem Solution Case

Slow rendering speed using Revit Proxy. The rendering time for a super high-rise project has been reduced from 24 hours to 6 hours

The material is not real. Scanning the real material (Agisoft Metashape) has increased the material authenticity of a certain stone curtain wall project by 90%

Improper selection of perspective: Following the "three-point composition method" and prioritizing key construction areas. For a certain bridge project, a reasonable perspective is used to enhance the persuasiveness of the plan

6、 Delivery Standards (Industry Reference)

Image resolution: not less than 3000 × 2250 pixels (meeting the printing requirements of A1 drawings)

Color mode: CMYK (for printing) or RGB (for electronic version)

File format: TIFF (lossless compression)/JPEG (compression ratio ≤ 10)

Annotation requirements: including scale bar, perspective description, and material description

Summary: The production of engineering construction renderings should follow the three principles of "data-driven technology integration industry standards". It is recommended that engineering enterprises establish standardized processes:

Develop a "Technical Manual for Rendering Production" (including standards for model accuracy, rendering parameters, etc.)

Establish a composite team of "modeling+rendering+construction"

Introducing BIM+VR technology to upgrade from 2D drawings to 3D immersive experience

By using the above methods, the performance of the plan can be significantly improved (winning rate increased by 30%), the decision-making cycle can be shortened (more than 50%), and construction risks can be reduced (70% of design changes can be detected in advance).

Source: A professional rendering company that pursues excellence with 18 years of experience in 3D rendering. We undertake the production of 3D renderings for factories, workshops, warehouses, villas, homestays, farms, gas stations, office buildings, clubs, landscapes, gardens, ancient architecture, ancestral halls, engineering, lighting, roads, bridges, curtain walls, exhibition halls, and indoor spaces. We cover the fields of mixing station engineering, industry, products, machinery, equipment, production lines, and steel structures, and combine 3D animation panoramic interactive rendering technology to enhance the quality of design innovation and interaction! - High dimensional design
