生产线效果图案例：

 【返回其它作品分类】

生产线设备效果图制作因行业和生产需求不同而有所差异，以下是常见行业生产线设备的一些分类及举例：

一、总装车间生产线设备效果图

AGV合装线‌：主要设备有引导带、AGV小车。

底盘线‌：主要设备有直轨空中轨道、弯轨空中轨道、摩擦驱动、底盘升降机、底盘吊具装置。

内饰线和最终线‌：主要设备有固定滚床、地轨、剪式升降机、滑板、旋转滚床、驱动装置、转线升降机。

PBS线‌：主要设备有电动夹紧器、气动夹紧器、旋转滚床、皮带滚床、升降滚床、移动滚床、PBS转内饰线升降机。

其他线‌：主要设备有空中轨道、倍速链运输装置、停止器、升降机、顶升移载机。

二、金属加工生产线设备效果图

原料处理设备效果图‌：包括开卷机效果图、矫平机效果图、剪切机效果图、纵剪机效果图、横剪机效果图等，用于钢卷的纵剪和横剪、矫平、涂油、包装等工序。

起重设备效果图‌：如吊车效果图、叉车效果图、电磁吸盘等，主要用于吊运热轧卷板。

后处理设备效果图‌：包括钢卷退火炉、罩式炉、连续退火炉、罩式退火炉、时效炉等，用于钢卷的退火等后处理工序。

三、自动化生产线设备效果图

电子制造效果图‌：全自动贴片机效果图、回流焊机效果图、波峰焊机效果图、全自动绕线机效果图、全自动焊锡机效果图、自动组装机效果图、自动测试机效果图、全自动分切机效果图、全自动激光打标机效果图、自动封口机效果图、自动锁螺丝机效果图等。

食品包装效果图‌：饮料自动生产线效果图、食品包装机械效果图、休闲食品加工设备效果图、罐头食品加工设备效果图等。

包装类‌：自动封口机效果图、自动贴标机效果图、自动贴膜机效果图、自动喷码机效果图、自动打包机效果图、自动烫金机效果图等。

塑料机械效果图‌：自动注塑机效果图、色母分选机效果图、色母称重机效果图、塑料去毛刺设备效果图等。

电池行业‌：充电宝自动组装生产线效果图、自动叠片机效果图、电池全自动焊接机效果图、全自动封装机效果图、极片入壳机效果图、电池冷热压机效果图、自动注液机效果图、极片自动冲切机效果图、电池切边折边烫边机等。

汽车制造效果图‌：轮毂自动打磨抛光、汽车保险丝组装机效果图、汽车自动生产线效果图、汽车连接器自动组装机效果图等。

连接器行业‌：麻花针自动生鼓腰机效果图、线簧孔自动穿丝机效果图、插针自动压接机效果图、插针针径分选机、RJ连接器自动组装机、连接器自动插针机、光纤自动组装机效果图、插孔自动收口机、麻花针自动检测校位机、USB自动组装机、HDMI母座自动插端机等。

五金配件行业‌：门窗传动器自动组装机效果图、弹簧钢珠半自动组装机效果图、合页自动组装机效果图、门把手自动组装机、门把手自动打磨抛光机、月牙锁自动组装机、转向角自动折弯机、五金型材自动切割机等。

手机行业‌：手机接口自动组装机、手机屏幕贴膜机、手机屏蔽罩贴附机、手机自动喷码机等。

安防锁具行业‌：锁芯自动钻孔扩圆机效果图、锁芯自动组装机、锁芯自动钻孔机、钥匙自动铣牙去毛边机等。

化妆品容器泵头行业‌：扳机泵头自动组装机效果图、标准扳机自动组装机效果图、化学剂泵头自动组装机效果图、医用消毒泵头自动组装效果图机、软硬管组装机等。

电子电器行业‌：耳机自动组装机、LED灯自动组装机、点火器自动组装机、电器部件自动组装机、饮水器制冷片自动焊锡机、骨架自动插针机等。

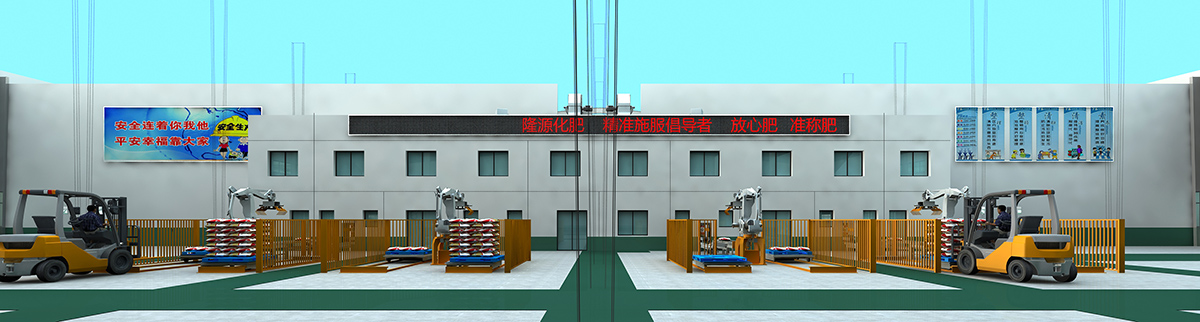

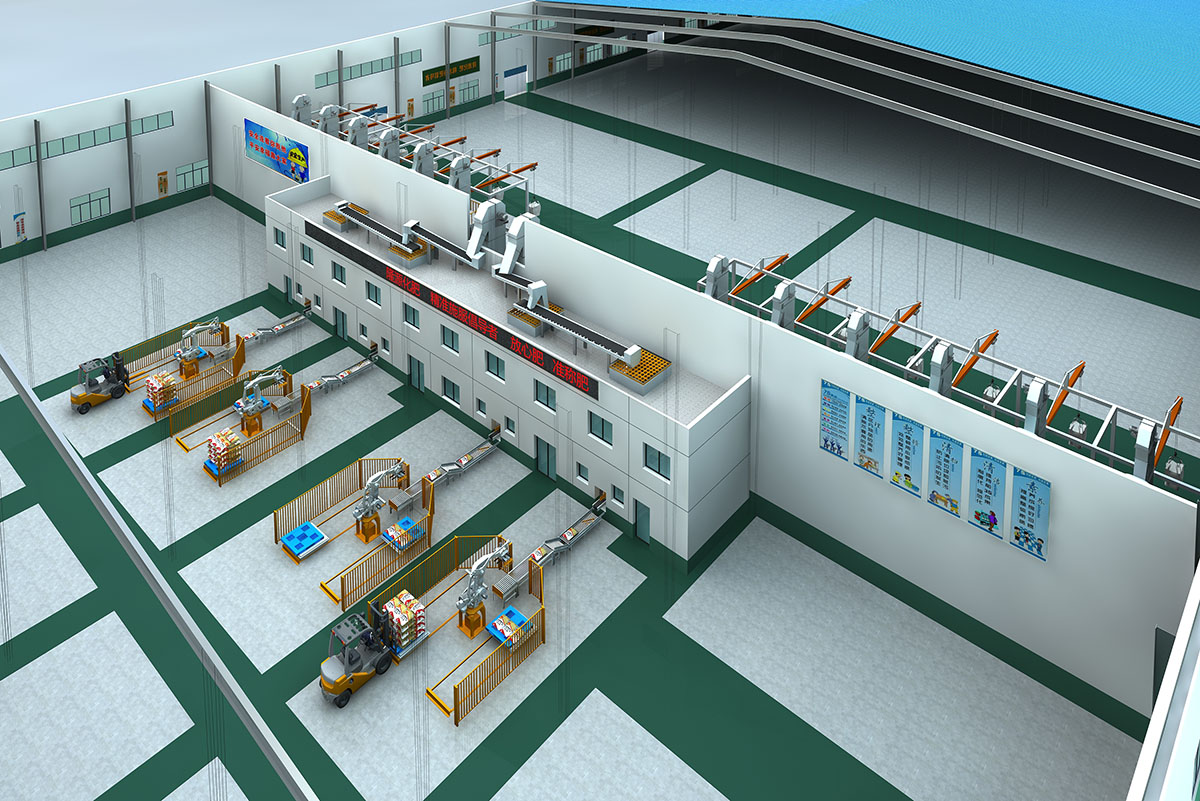

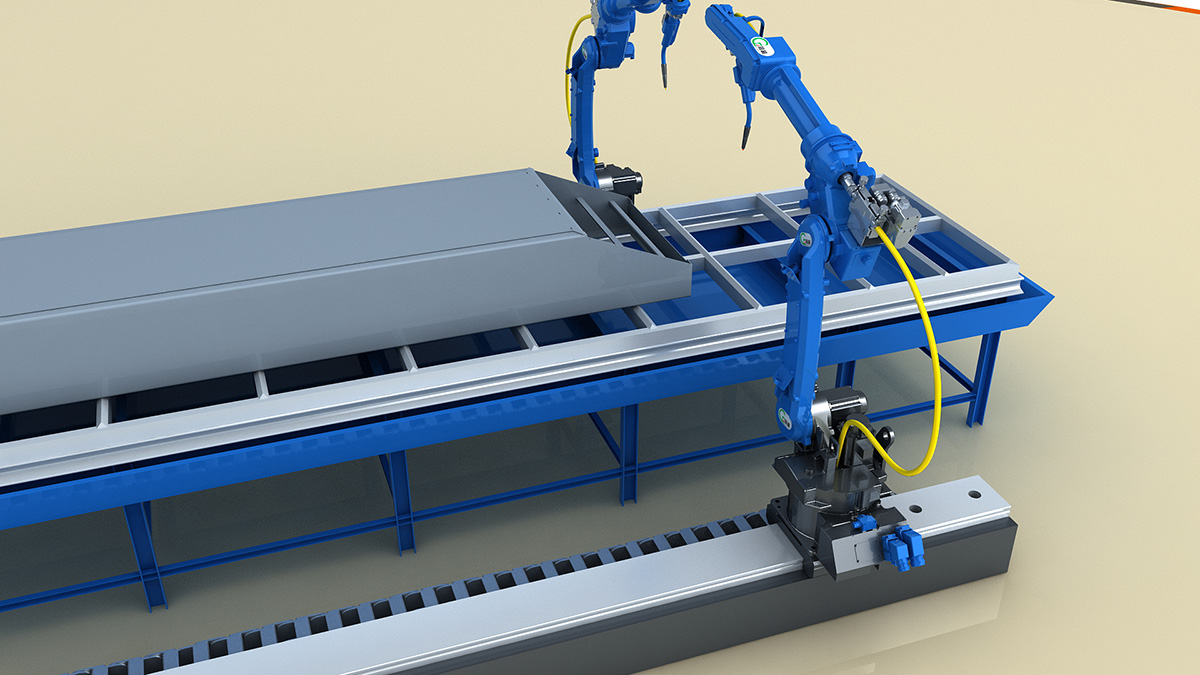

机器人自动化设备效果图‌：机器人自动化焊接效果图、机器人自动打磨抛光效果图、机器人自动化取料等。

四、输送与检测设备效果图

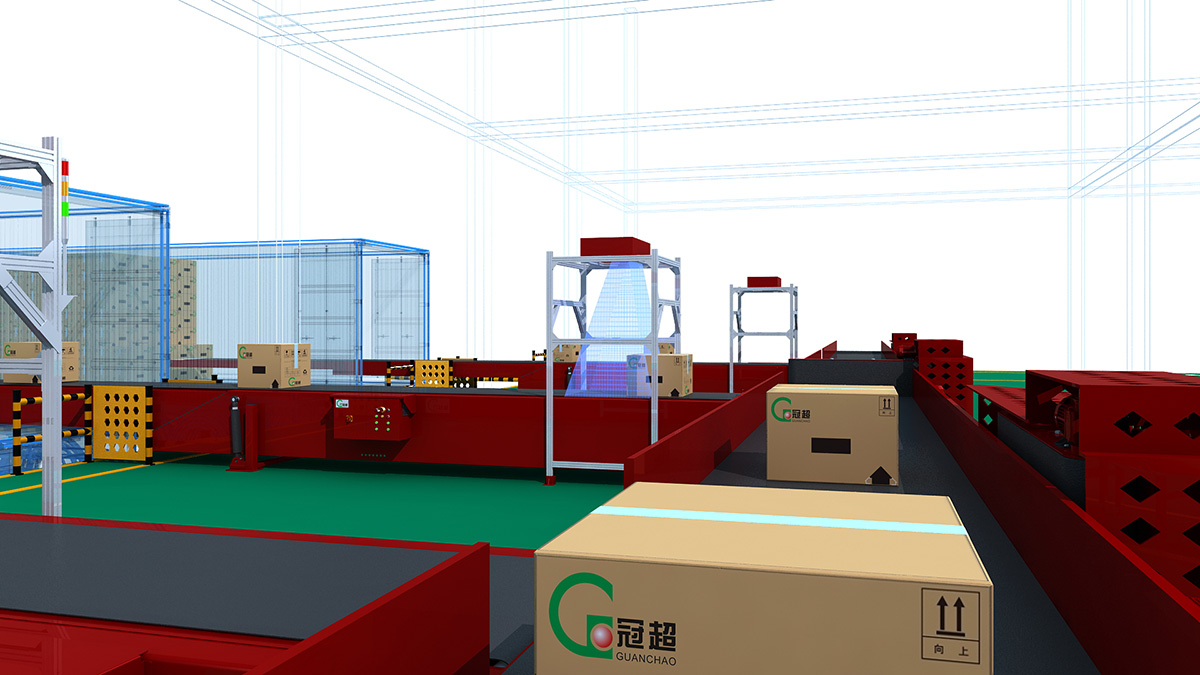

输送装置效果图‌：皮带输送机效果图适用于长距离、大量物料的连续输送；滚筒输送机适用于需要平稳输送的场合；链式输送机适用于需要精确控制物料位置的场景。

检测与质量控制设备效果图‌：质量检测仪能够检测产品的各项性能指标；尺寸测量仪用于测量产品的尺寸精度。

五、其他辅助设备

给料机‌：能够准确地将物料输送到加工机械中。

振动筛‌：用于分离物料中的杂质。

洗砂机‌：用于清洗物料表面的污垢。

六、耐火材料生产线设备

原料处理系统‌：包括小袋投料站效果图、吨袋投料站效果图、拆包设备效果图、气力输送装置效果图等。

输送系统效果图‌：皮带输送机效果图、斗式提升机效果图、螺旋输送机效果图等。

存储系统‌：原料储罐、中间缓存仓等。

配料系统‌：自动配料系统、螺旋喂料机、振动喂料机、皮带喂料机、称重系统等。

混合系统‌：混合机等。

成型与压制系统‌：液压砖机、布料小车等。

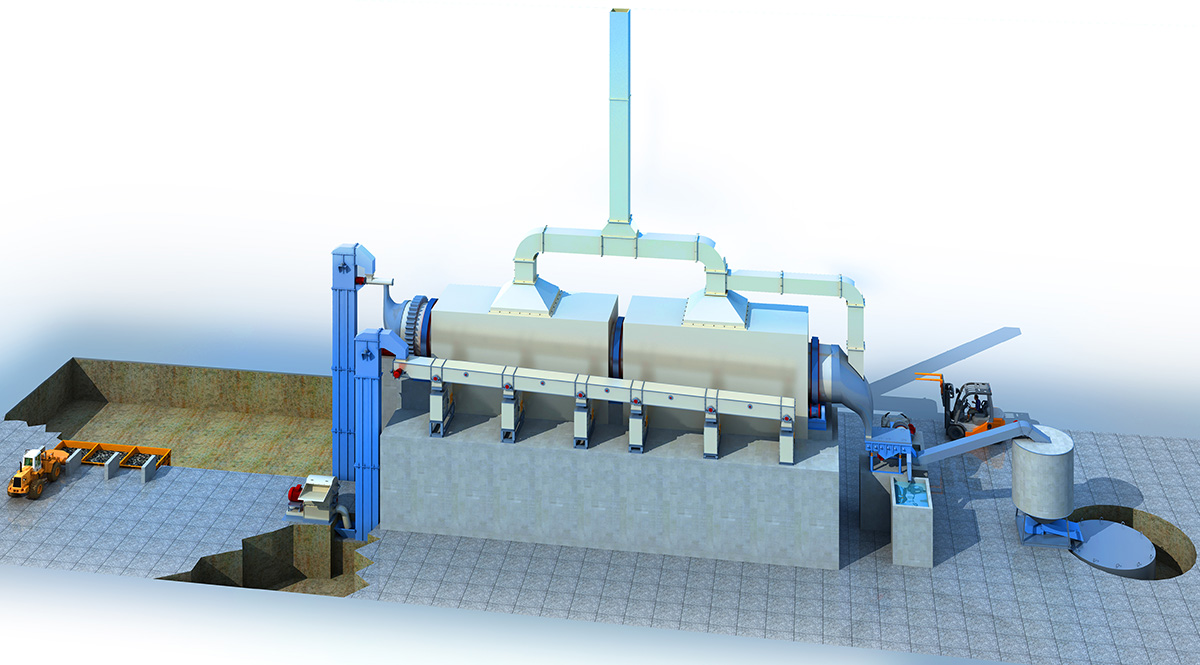

干燥与烧成系统‌：烘干机、干燥窑、烧成窑等。

成品处理系统‌：出砖机、码垛机效果图、包装机效果图等。

控制系统‌：电器控制系统，包括PLC、触摸屏等设备。

七、PC构件生产线设备

预处理设备‌：划线机效果图、模台存取机等。

成型加工设备‌：混凝土布料机效果图、振动台等。

养护处理设备‌：立体养护窑效果图等。

输送系统‌：运输车、摆渡车等。

辅助设备效果图‌：清理机、数控划线机、摊铺式布料机、振动赶平机、预养护窑、抹光机、拉毛机、堆垛机、翻板机、模台横移车（升降式平移车）、构件专用运输车、筒式送料机（混凝土输送料斗）、流水线控制系统、钢模台、模板转运车等。

钢筋加工设备效果图‌：全自动数控弯箍机、数控钢筋调直切断机、全自动数控剪切机、全自动数控弯曲机、自动钢筋桁榘焊接机、钢筋切断机、钢筋弯曲机、小弯箍机、小调直机、滚丝机、轨道运输平台、网片点焊机等。

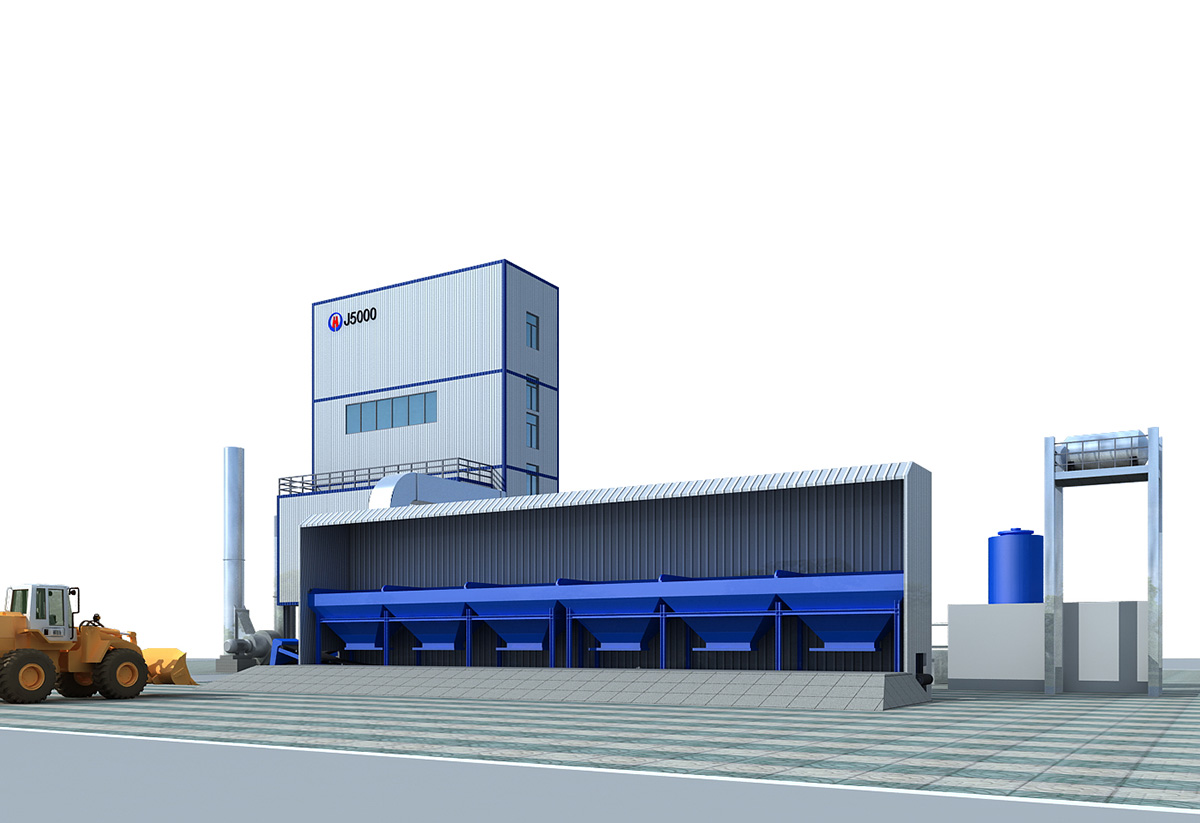

搅拌站设备效果图‌：搅拌站、砂石料仓、水泥粉料罐、高架运料轨道、装载机等。

固定模合车间设备‌：钢模台、电动布料斗、接料摆渡平台、温度控制系统、地坪打磨机、蒸养棚、手工混凝土料斗、构件运输车等。

起重及厂内运输设备‌：短距运输货车、叉车、龙门吊、双梁桥式起重机、电子地磅等。

公用辅助设备‌：空压机效果图、试验检测设备效果图、维修设备效果图、除尘系统等。

八、破碎制砂生产线设备效果图

核心设备‌：颚式破碎机效果图、圆锥破碎机效果图、反击式破碎机效果图、制砂机、洗砂机等。

辅助设备‌：振动给料机效果图、振动筛、皮带输送机、控制系统、中转料仓等。

来源：专业的效果图公司，追求卓越18年的三维图制作经验，承接厂房/车间/仓储/别墅/民宿/农庄/加油站/办公楼/会所/景观/园林/古建/祠堂/工程/亮化/道路/桥梁/幕墙/展馆/室内类效果图制做，覆盖拌合站工程|工业|产品|机械|设备|生产流水线|钢结构领域的3d效果图制做，结合3D动画全景图交互渲染技术助力，提升设计方案创新和互动的的品质！—高维设计

The production line equipment rendering varies depending on the industry and production needs. The following are some classifications and examples of common industry production line equipment:

1、 Equipment rendering of the final assembly workshop production line

AGV assembly line: The main equipment includes guide belts and AGV carts.

Chassis line: The main equipment includes straight track aerial track, curved track aerial track, friction drive, chassis lift, and chassis hoisting device.

Interior Line and Final Line: The main equipment includes fixed roller beds, ground rails, scissor lifts, skateboards, rotating roller beds, drive devices, and transfer line lifts.

PBS line: The main equipment includes electric clamps, pneumatic clamps, rotating roller beds, belt roller beds, lifting roller beds, mobile roller beds, and PBS interior line elevators.

Other lines: The main equipment includes aerial tracks, double speed chain transport devices, stoppers, elevators, and overhead transfer machines.

2、 Equipment rendering of metal processing production line

Rendering of raw material processing equipment: including unwinding machine rendering, leveling machine rendering, shearing machine rendering, longitudinal cutting machine rendering, transverse cutting machine rendering, etc., used for longitudinal and transverse cutting, leveling, oiling, packaging and other processes of steel coils.

Lifting equipment renderings: such as crane renderings, forklift renderings, electromagnetic suction cups, etc., mainly used for lifting hot-rolled coils.

Post processing equipment rendering: including steel coil annealing furnace, hood type furnace, continuous annealing furnace, hood type annealing furnace, aging furnace, etc., used for post-treatment processes such as annealing of steel coils.

3、 Rendering of Automated Production Line Equipment

Electronic manufacturing renderings: renderings of fully automatic surface mount machine, reflow soldering machine, wave soldering machine, fully automatic winding machine, fully automatic soldering machine, automatic assembly machine, automatic testing machine, fully automatic slitting machine, fully automatic laser marking machine, automatic sealing machine, automatic screw locking machine, etc.

Food packaging renderings: beverage automatic production line renderings, food packaging machinery renderings, snack food processing equipment renderings, canned food processing equipment renderings, etc.

Packaging category: automatic sealing machine rendering, automatic labeling machine rendering, automatic film sticking machine rendering, automatic coding machine rendering, automatic packaging machine rendering, automatic hot stamping machine rendering, etc.

Plastic mechanical renderings: renderings of automatic injection molding machines, color masterbatch sorting machines, color masterbatch weighing machines, plastic deburring equipment, etc.

Battery industry: renderings of power bank automatic assembly production line, automatic laminating machine, fully automatic battery welding machine, fully automatic packaging machine, pole piece shell insertion machine, battery cold and hot press machine, automatic liquid injection machine, pole piece automatic punching machine, battery cutting, folding, and ironing machine, etc.

Automotive manufacturing renderings: automatic grinding and polishing of wheel hubs, renderings of automotive fuse assembly machines, renderings of automotive automatic production lines, renderings of automotive connector automatic assembly machines, etc.

Connector industry: Fried Dough Twists needle automatic drum waist machine renderings, wire spring hole automatic threading machine renderings, pin automatic crimping machine renderings, pin diameter sorting machine, RJ connector automatic assembly machine, connector automatic pin machine, optical fiber automatic assembly machine renderings, socket automatic closing machine, Fried Dough Twists needle automatic detection and alignment machine, USB automatic assembly machine, HDMI mother seat automatic insertion machine, etc.

Hardware accessories industry: renderings of automatic assembly machines for door and window actuators, semi-automatic assembly machines for spring steel balls, automatic assembly machines for hinges, automatic assembly machines for door handles, automatic polishing machines for door handles, automatic assembly machines for crescent locks, automatic bending machines for steering angles, automatic cutting machines for five metal profiles, etc.

Mobile phone industry: mobile phone interface automatic assembly machine, mobile phone screen film sticking machine, mobile phone shielding cover attachment machine, mobile phone automatic coding machine, etc.

Security lock industry: renderings of lock core automatic drilling and expanding machines, lock core automatic assembly machines, lock core automatic drilling machines, key automatic milling and deburring machines, etc.

Cosmetics container pump head industry: trigger pump head automatic assembly machine rendering, standard trigger pump head automatic assembly machine rendering, chemical agent pump head automatic assembly machine rendering, medical disinfection pump head automatic assembly rendering, soft and hard tube assembly machine, etc.

Electronic and electrical industry: headphone automatic assembly machine, LED light automatic assembly machine, igniter automatic assembly machine, electrical component automatic assembly machine, water dispenser refrigeration chip automatic soldering machine, skeleton automatic pin insertion machine, etc.

Robot automation equipment renderings: robot automation welding renderings, robot automation polishing renderings, robot automation material picking renderings, etc.

4、 Rendering of conveying and testing equipment

Conveyor device rendering: Belt conveyor rendering is suitable for continuous conveying of long distances and large quantities of materials; Roller conveyor is suitable for situations that require smooth transportation; Chain conveyors are suitable for scenarios that require precise control of material position.

Effect diagram of testing and quality control equipment: The quality tester can detect various performance indicators of the product; Dimensional measuring instruments are used to measure the dimensional accuracy of products.

5、 Other auxiliary equipment

Feeder: capable of accurately conveying materials to processing machinery.

Vibration screen: used to separate impurities in materials.

Sand washing machine: used to clean the dirt on the surface of materials.

6、 Refractory material production line equipment

Raw material processing system: including renderings of small bag feeding station, ton bag feeding station, unpacking equipment, pneumatic conveying device, etc.

Conveyor system renderings: belt conveyor renderings, bucket elevator renderings, screw conveyor renderings, etc.

Storage system: raw material storage tanks, intermediate cache warehouses, etc.

Ingredient system: automatic ingredient system, spiral feeder, vibrating feeder, belt feeder, weighing system, etc.

Hybrid system: mixer, etc.

Forming and pressing system: hydraulic brick press, fabric trolley, etc.

Drying and firing system: dryer, drying kiln, firing kiln, etc.

Finished product processing system: brick making machine, palletizing machine rendering, packaging machine rendering, etc.

Control system: Electrical control system, including PLC, touch screen and other equipment.

7、 PC component production line equipment

Preprocessing equipment: line drawing machine rendering, mold storage and retrieval machine, etc.

Forming and processing equipment: renderings of concrete laying machines, vibration tables, etc.

Maintenance treatment equipment: 3D maintenance kiln renderings, etc.

Conveyor system: transport vehicles, shuttle buses, etc.

Auxiliary equipment renderings: cleaning machine, CNC marking machine, paving type material feeder, vibration leveling machine, pre curing kiln, trowel machine, carding machine, stacker crane, flipping machine, mold platform transverse moving car (lifting translation car), component dedicated transport car, tube feeder (concrete conveying hopper), assembly line control system, steel mold platform, template transfer car, etc.

Renderings of steel bar processing equipment: fully automatic CNC bending machine, CNC steel bar straightening and cutting machine, fully automatic CNC shearing machine, fully automatic CNC bending machine, automatic steel bar truss welding machine, steel bar cutting machine, steel bar bending machine, small bending machine, small straightening machine, rolling machine, rail transportation platform, mesh spot welding machine, etc.

Equipment rendering of mixing plant: mixing plant, sand and gravel silo, cement powder tank, elevated material transport track, loader, etc.

Fixed mold workshop equipment: steel mold table, electric fabric hopper, material shuttle platform, temperature control system, floor polishing machine, steam curing shed, manual concrete hopper, component transport vehicle, etc.

Lifting and in plant transportation equipment: Short distance transport trucks, forklifts, gantry cranes, double beam overhead cranes, electronic weighing scales, etc.

Common auxiliary equipment: renderings of air compressors, testing and inspection equipment, maintenance equipment, dust removal systems, etc.

8、 Equipment rendering of crushing sand production line

Core equipment: jaw crusher rendering, cone crusher rendering, impact crusher rendering, sand making machine, sand washing machine, etc.

Auxiliary equipment: vibrating feeder rendering, vibrating screen, belt conveyor, control system, transfer bin, etc.

Source: A professional rendering company that pursues excellence with 18 years of experience in 3D rendering. We undertake the production of 3D renderings for factories, workshops, warehouses, villas, homestays, farms, gas stations, office buildings, clubs, landscapes, gardens, ancient architecture, ancestral halls, engineering, lighting, roads, bridges, curtain walls, exhibition halls, and indoor spaces. We cover the fields of mixing station engineering, industry, products, machinery, equipment, production lines, and steel structures, and combine 3D animation panoramic interactive rendering technology to enhance the quality of design innovation and interaction! - High dimensional design
